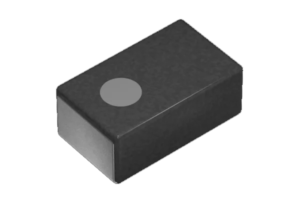

TDK TFM-BLE Thin-Film Power Circuit Inductors utilize a magnetic metal material with high saturation magnetic flux density to meet the DC bias characteristics required by inductors for power circuits. The TFM-BLE Inductors offer mounting stability and can be mounted to general-purpose land patterns, featuring the same footprint and terminal structures as general chip parts. A closed magnetic circuit structure minimizes leakage flux. The TDK TFM-BLE Thin-Film Power Circuit Inductors feature a 0.24µH to 0.47µH inductance range with ±20% tolerance, a typical DC resistance range of 18mΩ to 25mΩ, and a -40°C to +125°C operating temperature range.
Features
- Metal magnetic material with high saturation magnetic flux density
- Meets DC bias characteristics needed by inductors for power circuits
- A closed magnetic circuit structure
- Minimized leakage flux
- Same product shape and terminal structure as general chip parts
- Excellent mounting stability characteristics
- Can also be mounted to general-purpose land patterns
- Lead-free, Halogen-free, RoHS and REACH compliant
Specifications
- 0.24µH to 0.47µH inductance range
- ±20% tolerance
- DC resistance ranges
- 18mΩ to 25mΩ typical
- 20mΩ to 29mΩ maximum
- 1MHz measuring frequency
- 2.0mm x 1.20mm x 0.8mm in dimension
- Temperature ranges
- -40°C to +125°C operating
- -40°C to +85°C storage
